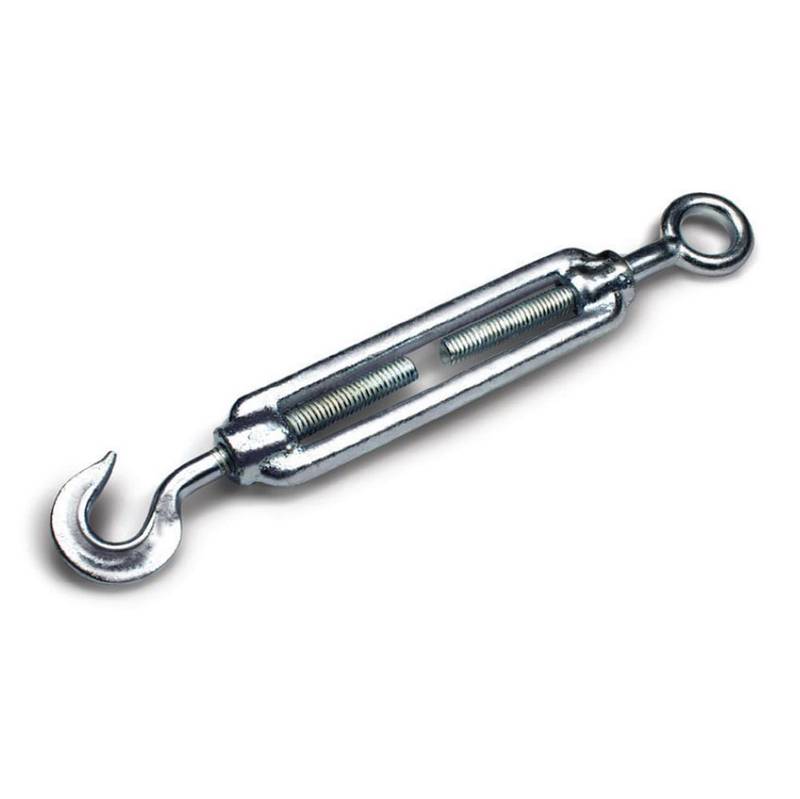

Turnbuckle M10, Hook/Eye, Zinc Plated, DIN 1480
Turnbuckle M10, Hook/Eye, Zinc Plated, DIN 1480
Turnbuckle M10, Hook/Eye, Zinc Plated, DIN 1480
Turnbuckle M10, Hook/Eye, Zinc Plated, DIN 1480

Turnbuckle M10, Hook/Eye, Zinc Plated, DIN 1480

SKU: 32-09521135-10

EAN: 8426241305353

Price with VAT 2.60€

Availability :
Main warehouse In Stock
Store warehouse In Stock
In Stock On Order
  • Description
  • Specifications
  • As regards turnbuckle ends, it is the most usual combination, due to the safety of the wire assembly in the ring and the speed to connect to the application with the hook.

    TIPS: The quality of the finish guarantees a very good corrosion resistance. In order not to compromise safety, the SWL established for each size must never be exceeded.

    Material

    • Steel C15

    Finish

    • Zinc plated

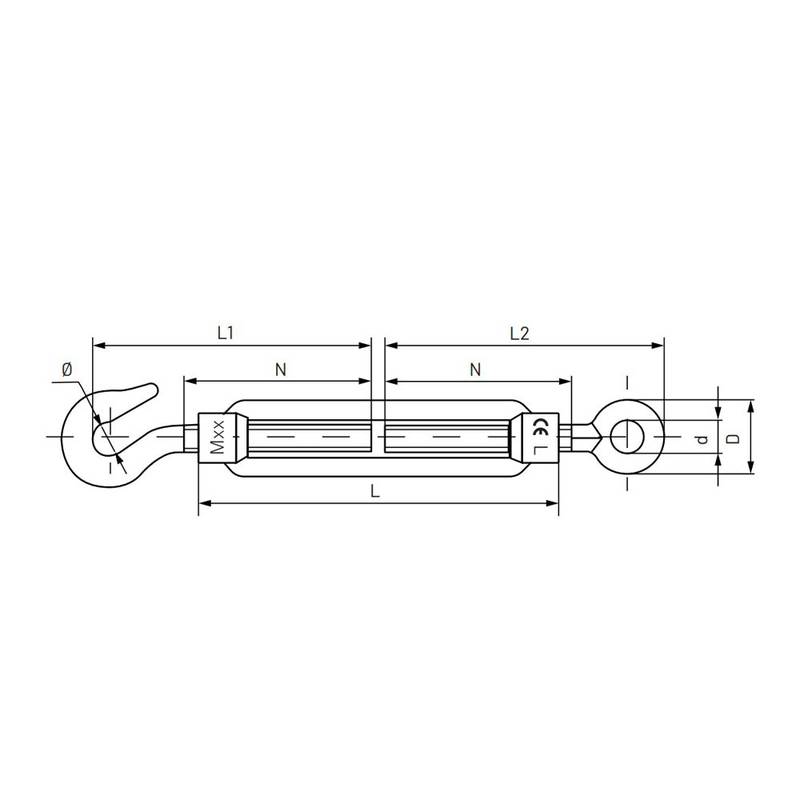

    Technical data

    • L (Total Length): 125 mm
    • L1 (Attachment Distance): 106 mm
    • L2 (Inner Length): 105 mm
    • D (Bolt Diameter): 31 mm
    • d (Thread Diameter): 14 mm
    • Ø (Hole Diameter): 13 mm
    • N (Side Distance): 68 mm
    • Max. Working Load (SWL, kg): 220 kg

  • Unit
    pcs
