Industrial Cable reel 25m
Industrial Cable reel 25m

Industrial Cable reel 25m

SKU: 16-YT8120

EAN: 5906083981203

25 m industrial cable reel with IP44 protection, 230/400 V outlets and thermal protection.

Price with VAT 226.60

Main warehouse In Stock
Store warehouse Out of Stock
  • Product Description

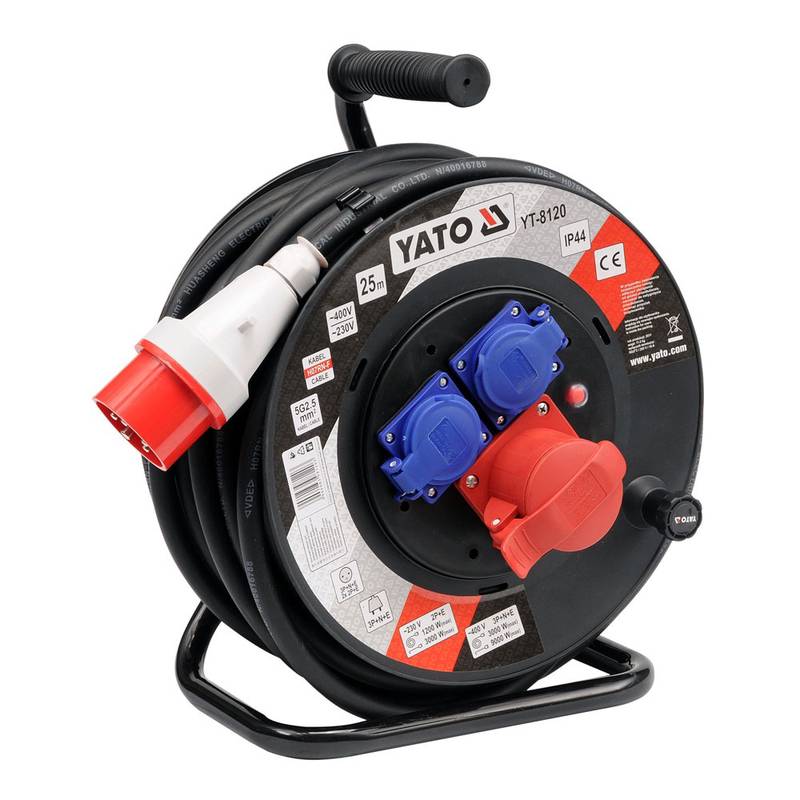

    The YT-8120 industrial power extension cable reel is designed for construction sites, workshops and industrial environments. It features a 25 m neoprene rubber sheathed cable wound onto a durable plastic drum mounted on a sturdy metal frame with an ergonomic handle. The IP44-rated dust- and splash-proof sockets make it suitable for indoor and outdoor use. Thermal protection automatically disconnects power when the cable temperature reaches 56 °C ±5 °C.

    The reel includes two ~230 V child-protected sockets and one ~400 V socket (5P). The 2.5 mm² conductor cross-section ensures minimal voltage drop even when powering high-current devices such as welders or compressors.

    Features

    • 25 m H07RN-F 5G2.5 mm² cable
    • IP44 protection – dust- and splash-proof
    • Neoprene rubber outer sheath – resistant to UV, oils and cold
    • Thermal cut-off for overheat protection
    • Child protection on 230 V sockets
    • Ergonomic metal frame with winding handle
    • Suitable for 230 V/400 V use

    Technical Data

    • Voltage: 230~ / 400 V, 50 Hz
    • Number of outlets: 2x 230 V (2P+E) + 1x 400 V (5P+N+E)
    • Cable type: H07RN-F 5G2.5 mm²
    • Length: 25 m
    • Max. load (coiled): 1200 W (230 V) / 3000 W (400 V)
    • Max. load (uncoiled): 3600 W (230 V) / 9000 W (400 V)
    • Protection rating: IP44
    • Weight: ~11.2 kg

  • Length (mm)
    300.00
    Width (mm)
    400.00
    Height (mm)
    240.00
    Weight (kg)
    10.92
    Gross Weight (kg)
    11.50
    Unit
    pcs
