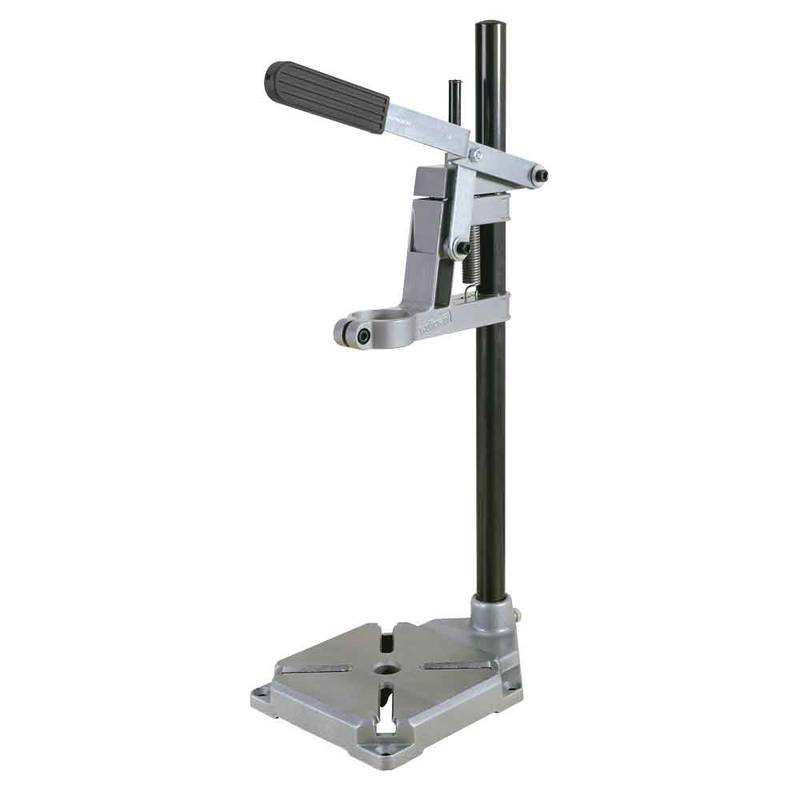

Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)
Drill Stand with circular column (CE)

Drill Stand with circular column (CE)

SKU: 40-3406000

EAN: 4006885340602

Price with VAT 56.60

Main warehouse In Stock
Store warehouse In Stock
  • Properties

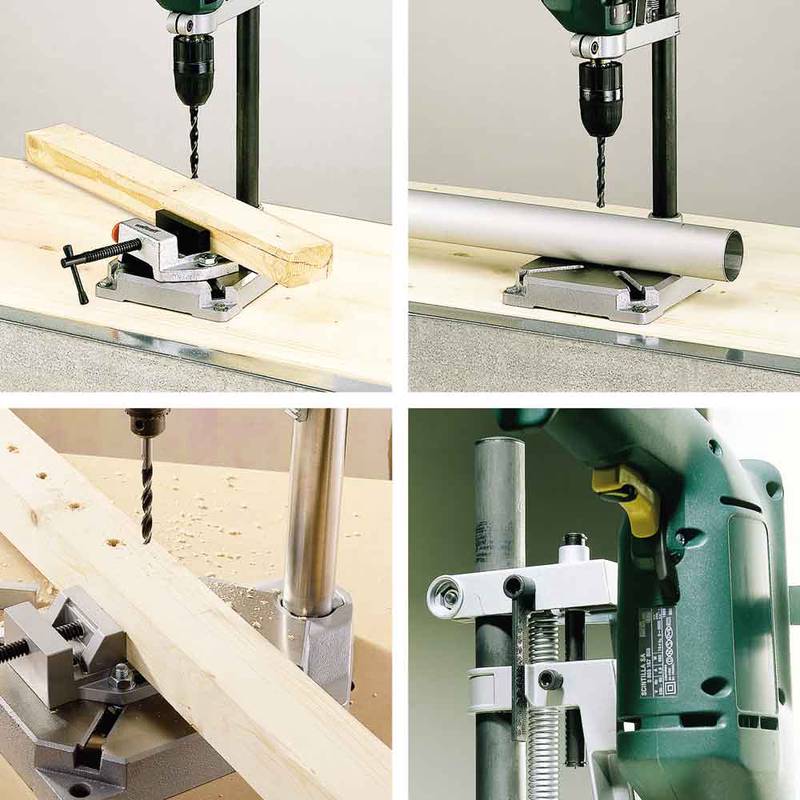

    • for drilling flat surfaces, round work pieces and battens with precision

    Technical data

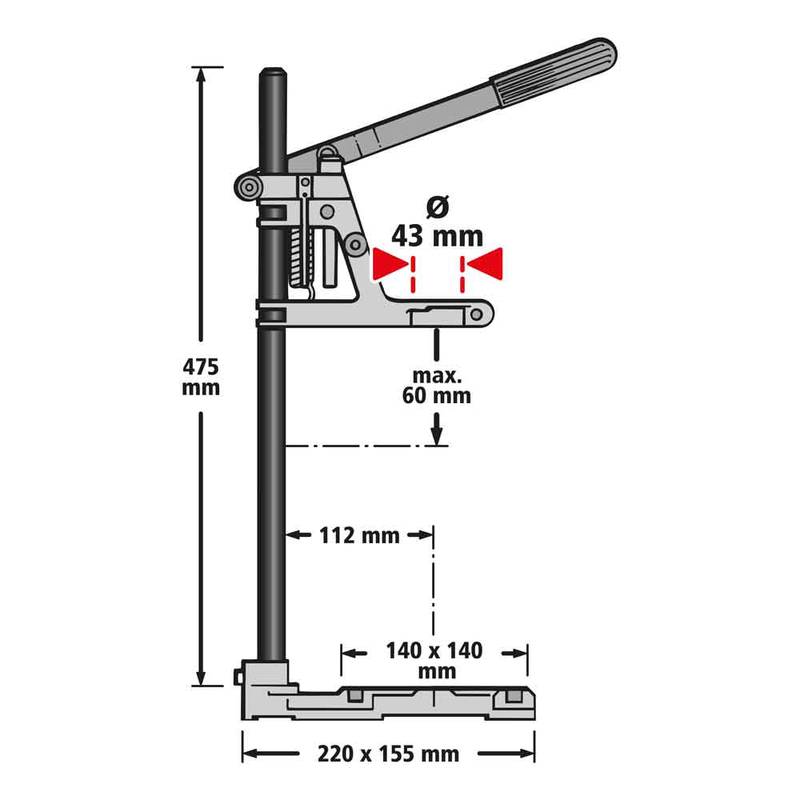

    • Product dimensions (W x D x H) 160 x 230 x 500 mm
    • Working heights 345 mm
    • Depth 112 mm
    • Additional product specification milled worktop with clamping grooves for fastening clamping blocks or vices
      • integrated return spring
      • with round column
      • cast iron plate 155 x 220 mm
      • working stroke max. 60 mm
      • with Euronorm collar Ø 43 mm
    • Machine area of working tables for all machines with Euronorm collar Ø 43 mm

  • Length (mm)
    525.00
    Width (mm)
    215.00
    Height (mm)
    80.00
    Weight (kg)
    3.40
    Gross Weight (kg)
    3.40
    Unit
    pcs
